Drawing entity

• Drawing Entity Components
  • Add Entity
  • Setup Fov Entity
  • Team Mask
• Drawing Entity Cpp implementation

This tutorial has been realized in the Tutorial/Maps/TutorialMap_Entities map provided in the Demo Project.

/!\ Entities are designed for optimization. The system behind them will batch updates and improve game performance. It is highly advised to replace drawers with entities.

Drawing Entity Components

There are multiple DrawingEntity components implementing the IFOW_DrawingEntity_Interface. Three different kinds of them exist for now:

• Geometry drawers: They will pierce fog by rasterizing a given geometry. Used by FOW_DrawingEntity_BoxComponent.
• Circle drawers: They will pierce fog with a specific rasterizer only able to trace circles. Used by FOW_DrawingEntity_CircleComponent.
• FOV drawers: They will pierce fog by collecting the colliders to create shadow geometries. Used by FOW_DrawingEntity_FOVComponent.

All DrawingEntity work the same; they hold data and the given UFOW_LayerSetting will define how this data will be used to pierce the Fog.

Add Entity

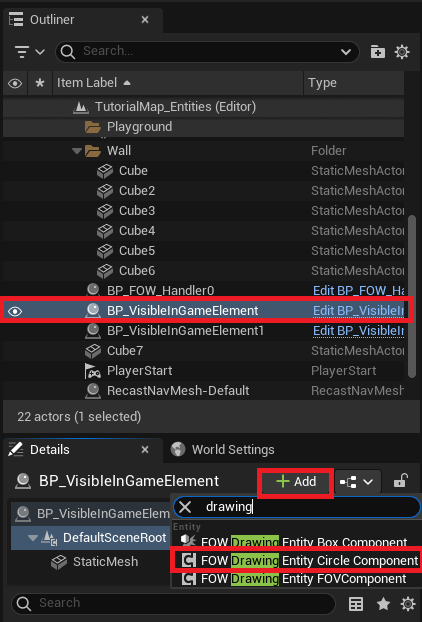

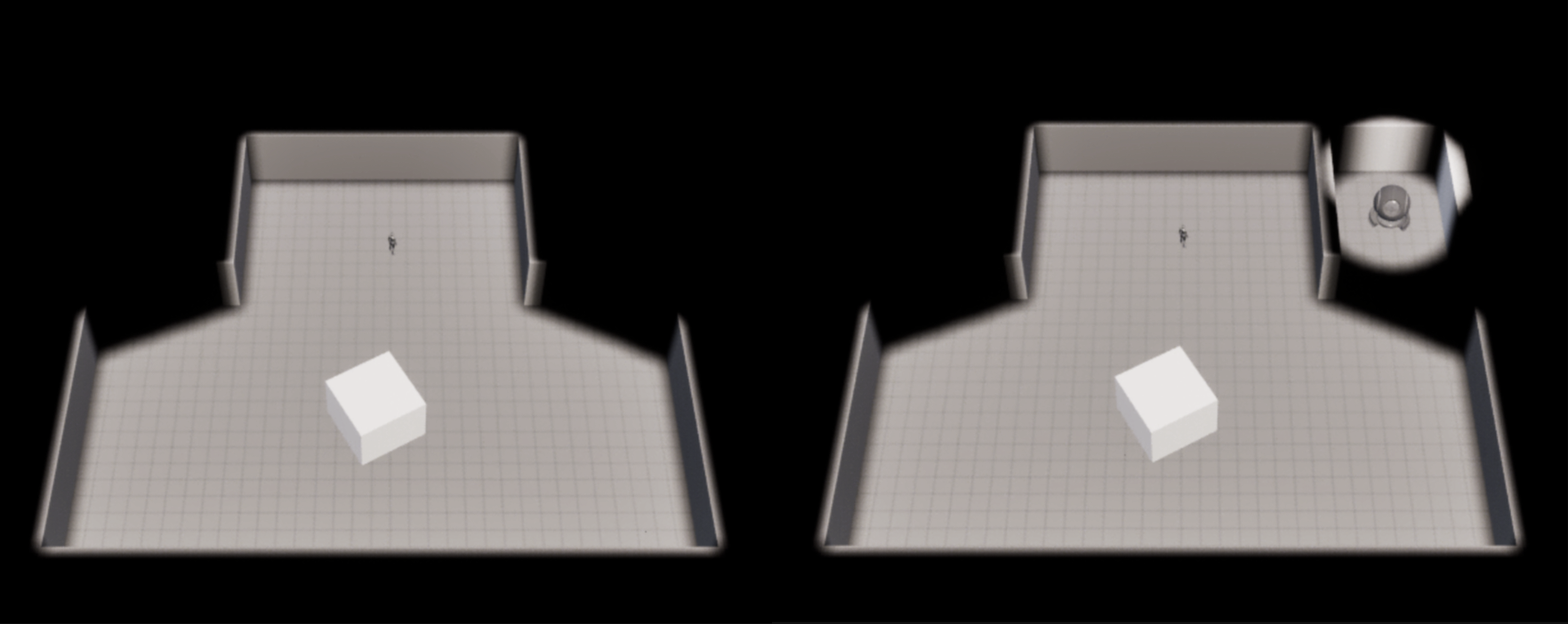

To use them, add a FOW_DrawingEntity_CircleComponent / FOW_DrawingEntity_BoxComponent / FOW_DrawingEntity_FOVComponent to an instanced actor or to your existing Blueprint. The default settings of those components are made to pierce the fog.

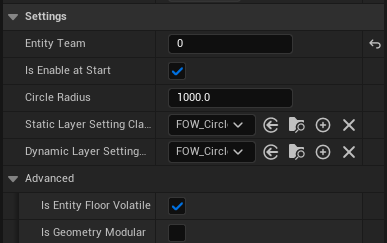

All drawers will have barely the same settings:

• IsEnableAtStart: Define if the entity starts drawing from the BeginPlay or if it will be enabled later by calling EnableEntity().
• EntityTeam: Define for which team the entity will be drawing. The team can be changed at runtime by calling SetEntityTeam().
• Static/DynamicLayerSettingClass: Define how the drawer will bring modification to the fog. Those can't be changed at runtime.
• The advanced section is only necessary for multiple FOW_Floor games. Their behavior will be explained later.

Setup Fov Entity

FOV entities are used to simulate the sight of a unit in a top-down game. The FirstSetUp tutorial shows how to add an FOV Drawer and warns about the performance issues they can cause when too many are used. The FOVEntities provide a solution with the same features as the drawers but run way faster.

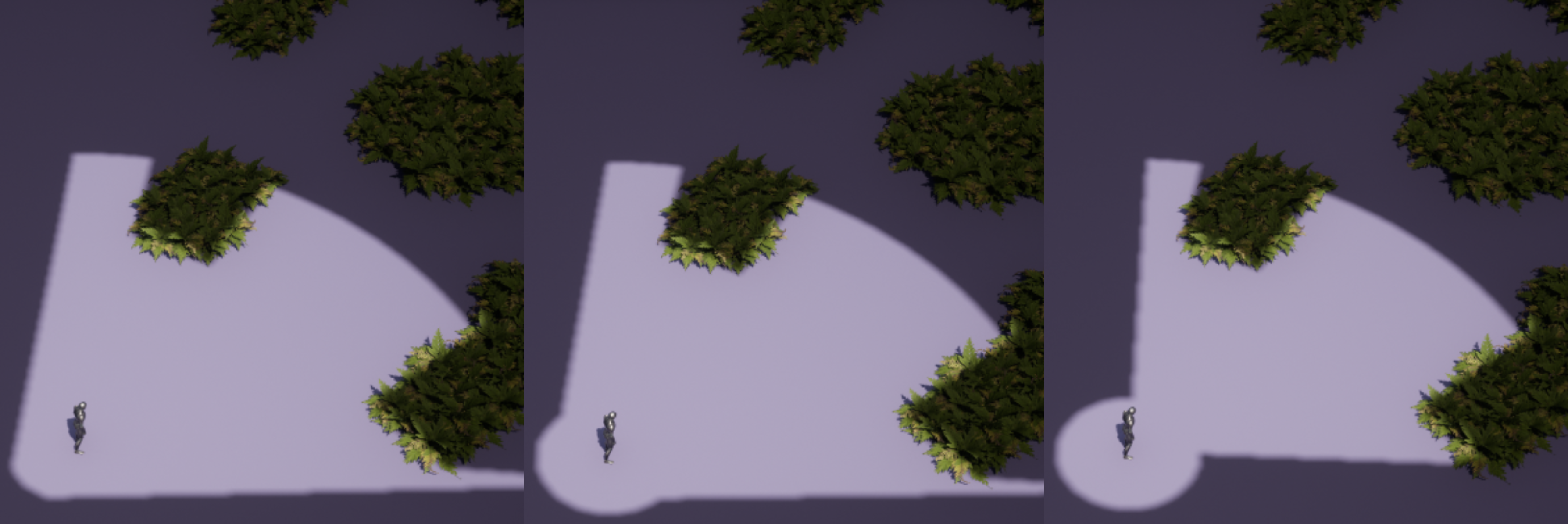

In addition to casting shadows, FOVEntities can also have a vision cone. The cone is composed of a circle and a cone, with each entity having customizable settings.

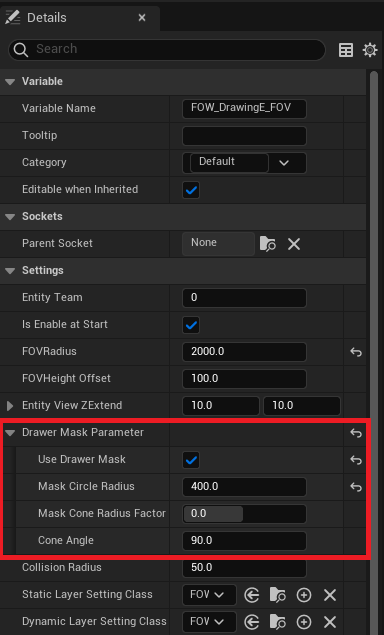

To enable the vision cone, navigate to the FOW_DrawingEntity_FOVComponent properties and turn on UseDrawerMask. New settings will appear, allowing you to tweak the shape of the cone:

• MaskCircleRadius: Changes the size of the circle at the origin of the cone.
• MaskConeRadiusFactor: Offsets the cone from the center of the circle. Clamped between -1 and 1.
• ConeAngle: Adjusts the field of view (FOV) of the entity.

Team Mask

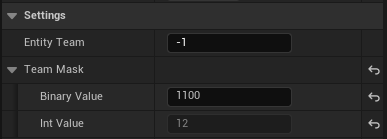

You will find a hidden property if you set the EntityTeam to -1. The TeamMask is a struct composed of an editable string to provide a mask in binary, and by an int showing the conversion value. Setting the EntityTeam to -1 will update the fog for every team. The binary mask is here to provide some flexibility if you don't need to update every team.
For example, if you need to update the fog only for team 3 and 4, the TeamMask will be 1100.

Drawing Entity cpp implementation

You can make your own drawing component or directly turn your UObject to entities and give them the possibility to alter the state of the fog. To be done...
